Dive Rite Regulator Manuals
Click a regulator below to view its full manual.
IMPORTANT WARNINGS
Read this manual carefully before using any Dive Rite regulator. You should fully understand how your regulator works and be proficient in its use prior to diving.
Assembly and disassembly of regulator components, and any repairs or internal maintenance, should only be performed by a certified technician working under an authorized Dive Rite dealer.
Before using your regulator, read and understand each warning, as well as warnings and cautions appearing throughout the manual. Failure to do so could result in damage to or loss of equipment, serious injury, or death.
Before diving, obtain proper training and certification from a recognized training agency.
As part of your training, master all regulator skills including assembly, disassembly, second stage clearing and recovery, continuous breathing while on scuba, and post-dive cleaning and storage.
RG5300 XT Regulator Manual
XT1 First Stage
Overview
The XT1 is a balanced diaphragm first stage regulator designed for exceptional performance and reliability. It maintains consistent performance regardless of depth or cylinder pressure and is environmentally sealed to protect against corrosion, contamination, and freezing.
Five low-pressure ports and two high-pressure ports provide flexible hose routing for backmount or sidemount configurations. The high-pressure ports are angled 90° from the DIN or Yoke fitting for optimal hose alignment. Available in both DIN and Yoke configurations.
Specifications
- Balanced diaphragm; environmentally sealed
- 5 LP ports (3/8-24 UN)
- 2 HP ports (7/16-20 UNF/ISO263) at 90° angle
- Intermediate pressure: 140 PSI (9.6 bar)
- Corrosion-resistant chrome-plated brass construction
- Configuration: DIN and Yoke available
Features & Benefits
- Balanced design provides consistent airflow at any depth or tank pressure.
- Environmentally sealed to prevent corrosion and freezing in cold-water environments.
- Rotating turret for optimal hose routing in both backmount and sidemount configurations.
- Compact design suitable for travel and technical applications.
Setup & Configuration
Inspect all O-rings and threads before attaching the regulator. Hand-tighten only to avoid thread damage. Connect HP and LP hoses to appropriate ports, open the cylinder valve slowly, and perform a leak check using approved solution.
WARNING: Do not connect a low-pressure hose to a high-pressure port or vice versa. Do not open the cylinder valve unless you are certain that all hoses are correctly attached.
To Attach a Hose:
- Check that the hose O-ring is in place.
- Line up the hose connector with a port.
- Hand-tighten the hose to the regulator. Tighten until snug using the appropriate wrench. Do not over-tighten.
Care & Maintenance
Rinse the regulator while pressurized after every dive. Allow it to dry completely out of direct sunlight. Store in a clean, dry environment. Service every 2 years or 100 dives by an authorized Dive Rite technician.
Warranty & Support
Lifetime warranty for the original purchaser. Must be serviced every 2 years or 100 dives by an authorized Dive Rite technician to maintain warranty coverage.
For Service & Support Click Here or call (386) 752-1087.

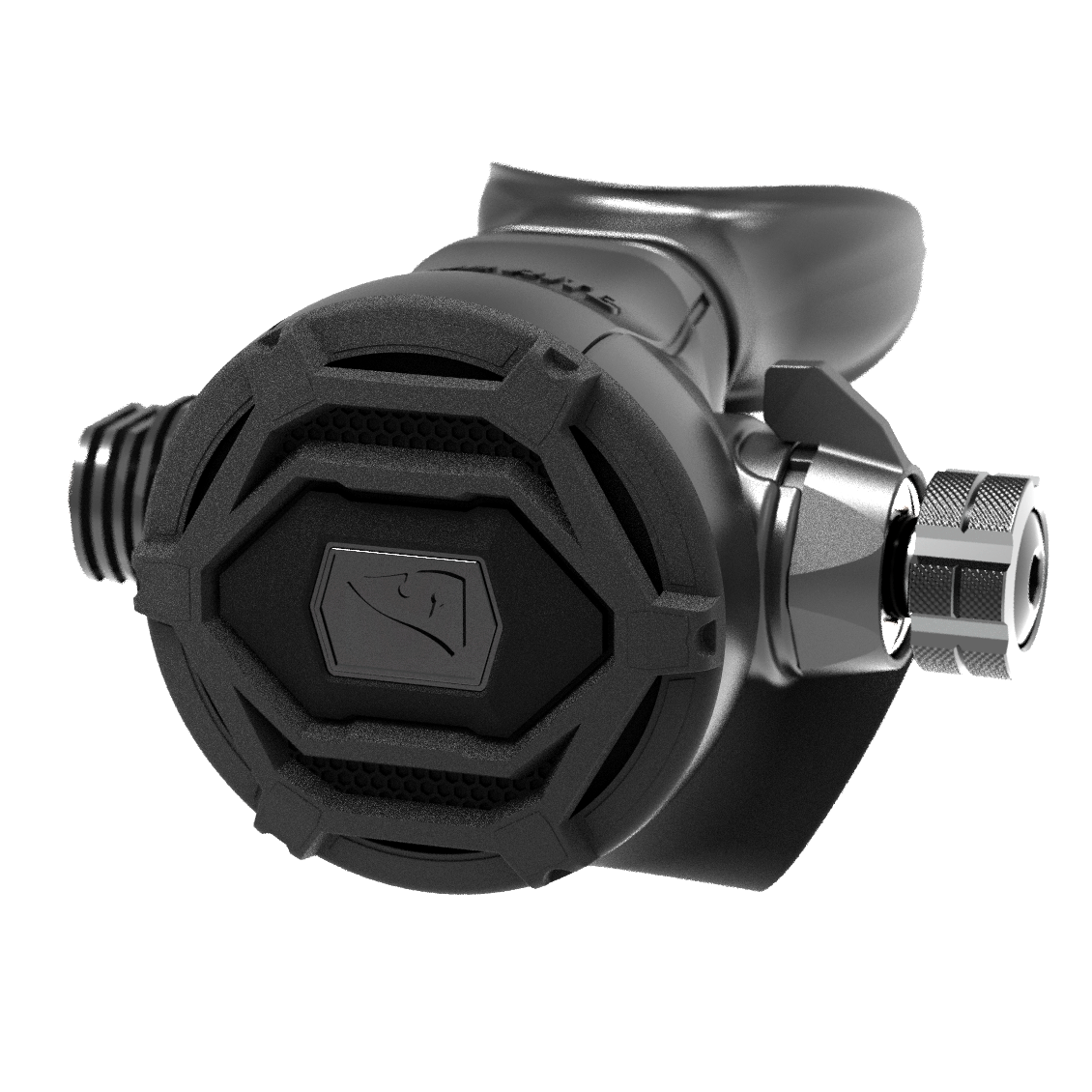

XT4 Second Stage
Overview
The XT4 is a pneumatically balanced downstream second stage featuring an adjustable inhalation knob and a Venturi lever for fine-tuning performance and free-flow control. It provides smooth, consistent breathing and user-adjustable comfort across all depths.
Built from rugged polymer housing with stainless steel and metal components, the XT4 includes Teflon-coated internal parts for friction reduction and cold-water resistance. The finned metal heat exchanger and Diamond-Like Carbon (DLC) coated metal accents enhance durability and prevent freezing.
Specifications
- Pneumatically balanced downstream design
- Adjustable inhalation resistance
- Venturi dive/pre-dive lever
- Teflon-coated internal components
- Finned heat exchanger for cold-water use
- Orthodontic mouthpiece for comfort
- Oxygen-compatible O-rings and lubricant
- Available in left-hand (RG5900-LEFT) and right-hand (RG5900-RIGHT)
Secondary Micro Spring Adjustment
The XT4 features an additional micro spring adjustment that allows independent fine-tuning of cracking pressure using a 5mm Allen key. Adjust clockwise to increase inhalation resistance, or counterclockwise to reduce it. Adjustments should be performed by qualified personnel.
Using the External Adjustment Knob
Turning the adjustment knob clockwise increases spring tension, making it more difficult for the valve to open and helping reduce free-flow in strong currents. Turning the knob counter-clockwise decreases spring tension, reducing breathing resistance but increasing the tendency to free-flow. Set the regulator so it breathes easily, just short of free-flow.
WARNING: Adjusting the knob for the maximum breathing resistance does not reduce the amount of air you breathe from your cylinder.
Using the Venturi Dive/Pre-Dive Switch
The dive/pre-dive switch controls a Venturi flow valve in the second stage. In pre-dive (lever forward) the valve decreases the likelihood of free-flow when not in use. In dive (lever back toward the mouthpiece) it decreases breathing effort and improves performance.
To Set the Venturi Switch:
- Set the switch to the dive position before each dive.
- Set the switch to the pre-dive position when the regulator is not in use or in/out of the water.
Care & Maintenance
Rinse thoroughly while pressurized after diving. Store in a cool, dry location away from direct sunlight. Service every 2 years or 100 dives by an authorized technician.
Warranty & Support
Lifetime warranty for the original purchaser. Must be serviced every 2 years or 100 dives by an authorized Dive Rite technician to maintain warranty coverage.
RG5800 FT Regulator Manual
FT1 First Stage
Overview
The FT1 first stage regulator is a balanced fixed turret design that delivers excellent performance and hose routing flexibility. Compact and durable, the FT1 is designed for both single tank and sidemount configurations. The fixed turret body allows optimal positioning of hoses for streamlined setups.
The FT1’s balanced diaphragm ensures stable intermediate pressure throughout the dive, even as tank pressure drops. Environmentally sealed construction prevents corrosion, mineral buildup, and freezing in cold-water conditions.
Specifications
- Balanced diaphragm first stage
- Fixed turret design
- Environmentally sealed
- 4 Low Pressure ports / 2 High Pressure ports (angled 90°)
- Intermediate pressure: 140 PSI (9.6 bar)
- Material: Chrome-plated marine brass and stainless steel components
- Configuration: Available in DIN and Yoke
- Sn-Ni corrosion-resistant plating finish
Features & Benefits
- Consistent performance regardless of cylinder pressure.
- Environmentally sealed against contamination and freezing.
- Fixed turret for clean hose routing.
- Durable finish for long service life.
- Compact design ideal for travel and sidemount setups.
Setup & Configuration
Inspect all O-rings and threads for cleanliness and integrity before attaching to the cylinder. Attach by hand to avoid thread damage. Connect HP and LP hoses to the appropriate ports. Open cylinder valve slowly and check for leaks using approved leak-detection fluid.
WARNING: Do not connect a low-pressure hose to a high-pressure port or vice versa. Do not open a cylinder valve unless all hoses are correctly attached.
To Attach a Hose:
- Check that the hose O-ring is in place.
- Line up the hose connector with a port.
- Hand-tighten the hose to the regulator. Tighten until snug using the appropriate sized wrench. Do not over-tighten.
Care & Maintenance
Rinse while pressurized after every dive. Allow the regulator to dry completely before storage. Store in a cool, dry place away from direct sunlight. Service every 2 years or every 100 dives by an authorized Dive Rite technician.
Warranty & Support
Lifetime warranty for the original purchaser. The regulator must be serviced every 2 years or every 100 dives by an authorized Dive Rite technician to maintain warranty coverage.
For Service & Support Click Here or call (386) 752-1087.

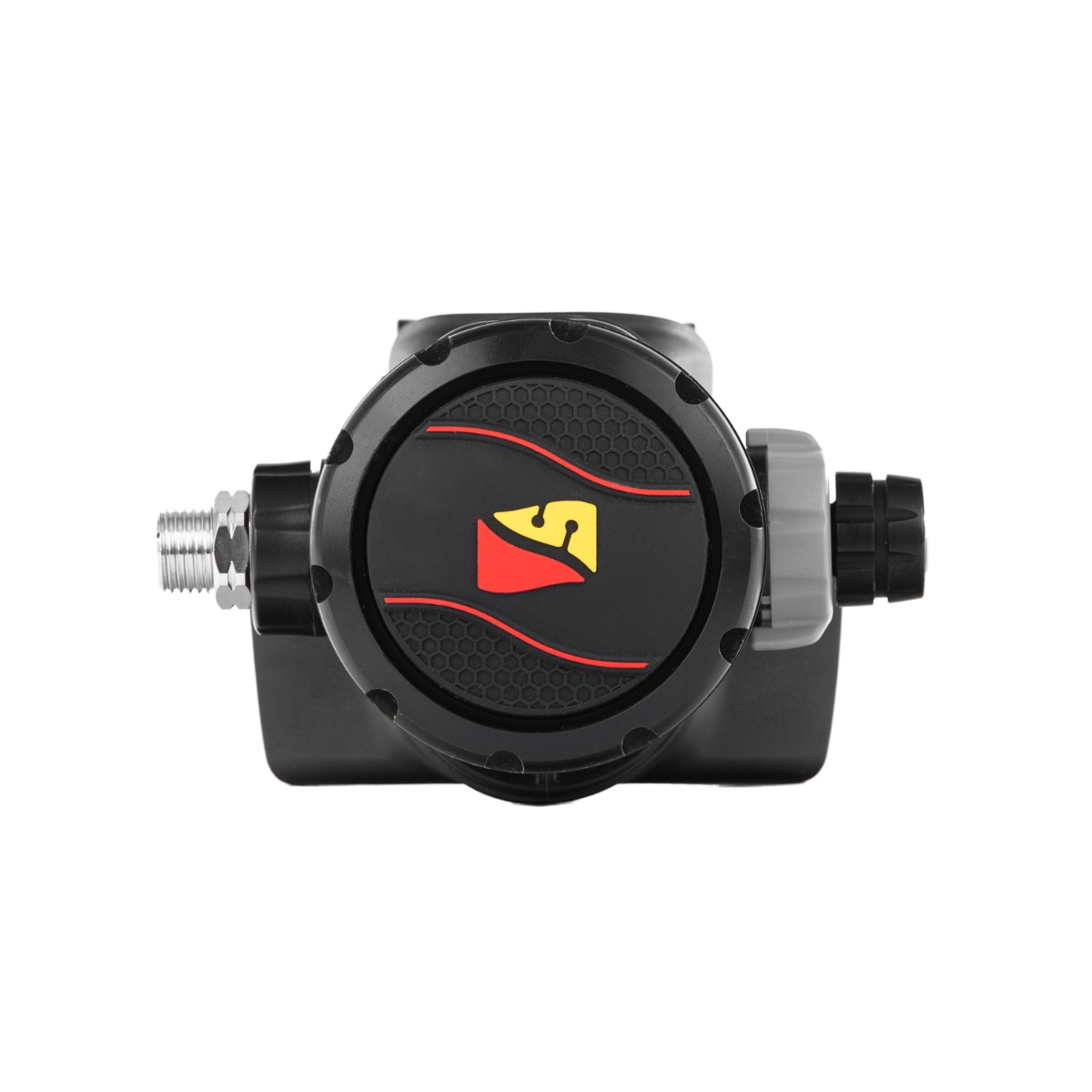

XT2 Second Stage
Overview
The XT2 second stage is a pneumatically balanced downstream regulator featuring a user-adjustable inhalation knob and Venturi assist control. It delivers smooth, stable airflow and allows divers to fine-tune breathing comfort at any depth.
Rugged polymer housing and stainless steel components provide excellent corrosion resistance. Compact and ergonomic, the XT2 is ideal for both primary and backup configurations.
Specifications
- Pneumatically balanced downstream design
- User-adjustable inhalation control
- Venturi assist lever for pre-dive/dive settings
- Deflection ring to deter free-flow
- Orthodontic mouthpiece for comfort
- Teflon-coated internal moving parts
- Oxygen-compatible O-rings and lubricant
- Available in right-hand, left-hand, and yellow faceplate versions
Features & Benefits
- Consistent breathing effort throughout all depths.
- Venturi lever provides smooth transition between pre-dive and dive modes.
- Balanced design reduces inhalation resistance.
- Corrosion-resistant materials extend service life.
- Ergonomic design minimizes jaw fatigue on long dives.
WARNING: Using oxygen compatible materials and assembly processes that are today industry standard, the XT is suitable for oxygen-enriched gas mixtures only if precautions are taken. Divers must use oxygen-compatible materials, keep the regulator clean from contaminants during assembly and use, and open the tank valve slowly.
Contact us at 800-495-1046, Monday–Friday, 9 AM–4 PM EST, or email support@diverite.com.
Care & Maintenance
Rinse while pressurized after diving. Store dry, away from direct sunlight and contaminants. Service every 2 years or 100 dives by an authorized Dive Rite technician.
Warranty & Support
Lifetime warranty for the original purchaser. Must be serviced every 2 years or 100 dives by an authorized Dive Rite technician to maintain warranty coverage.
For Service & Support Click Here or call (386) 752-1087.
RG5400 Oxygen Decompression Regulator Manual
WARNING: The Oxygen Deco Regulator is intended for use only as a decompression regulator. Do not attempt to use this regulator for stage bottle or travel gas applications.
WARNING: The Oxygen Deco Regulator is not intended for use deeper than 50 ft (15 m) on the appropriate gas mix.
NOTE: Assembly and service must be performed by a certified technician trained in oxygen-clean handling procedures.
Overview
The Dive Rite RG5400 Oxygen Decompression Regulator is a compact, lightweight, shallow-water regulator designed specifically for decompression use with high oxygen concentrations. Assembled in a clean room using oxygen-compatible materials and lubricants, it can be used with higher percentages of oxygen without additional preparation.
The unbalanced piston DIN first stage provides reliable performance at shallow depths. An integrated Over-Pressure Valve (OPV) provides an additional safety margin in case of first-stage malfunction. The single high-pressure port accommodates a 1” button gauge for compact configurations.
The XT2 second stage is a pneumatically balanced downstream design with adjustable inhalation control and Venturi assist. It provides smooth, consistent airflow and user adjustability for comfort during decompression stops. The 40” green low-pressure hose and green second stage faceplate clearly identify this regulator for oxygen service.
Specifications
- Unbalanced piston DIN first stage
- Over-Pressure Valve (OPV) on first stage
- Single HP port for 1” button gauge
- XT2 pneumatically balanced second stage
- Adjustable inhalation resistance
- Venturi assist for smooth gas delivery
- Orthodontic mouthpiece for comfort
- 40” green LP hose and green faceplate to indicate oxygen use
Features & Benefits
- Compact, lightweight design optimized for decompression bottles.
- Oxygen-compatible components for high O₂ concentrations.
- Integrated OPV enhances safety against overpressure.
- Color-coded hose and faceplate minimize gas-switching errors.
- Clean-room assembly ensures contamination-free oxygen handling.
Setup & Configuration
1. Verify all components are clean and oxygen-compatible before use.
2. Attach the DIN fitting to the decompression cylinder valve and hand-tighten securely.
3. Connect the 40” green LP hose to the XT2 second stage.
4. Slowly open the cylinder valve while observing the button gauge for pressure.
5. Perform a leak check using oxygen-safe leak-detection fluid.
Care & Maintenance
After each dive, rinse the regulator thoroughly with clean, fresh water. Keep pressurized while rinsing to prevent debris intrusion. Allow to dry completely in a clean, dust-free area. Service every 2 years or 100 dives by an authorized Dive Rite technician trained in oxygen-service maintenance.
Warranty & Support
Lifetime warranty for the original purchaser. To maintain warranty coverage, the regulator must be serviced every 2 years or 100 dives by an authorized Dive Rite technician. Oxygen service components should only be handled by trained personnel.
For Service & Support Click Here or call (386) 752-1087.
RG5400 Drysuit Inflation Regulator Manual
WARNING: Do not attempt to use this regulator for drysuit inflation at depths exceeding 330 ft (100 m).
WARNING: Do not attempt to use as a breathing regulator without proper oxygen-clean service. Failure to do so can result in serious personal injury or death.
NOTE: If used for breathing service, the RG5400 is only intended for use as a decompression regulator and not for stage or travel gas applications. It is not intended for use deeper than 50 ft (15 m) for breathing gas.
Overview
Compact in size and lightweight, the Dive Rite Drysuit Inflation Regulator is the perfect fit for argon or drysuit inflation bottles. Weighing only 12.4 oz (351.5 g) and measuring 3.5 in × 1.25 in (8.9 cm × 3.2 cm), this regulator adds minimal bulk to your inflation configuration.
The unbalanced piston first stage is equipped with an integrated Over-Pressure Valve (OPV) to provide an additional margin of safety in the event of a first-stage failure. Each unit includes a drysuit inflation hose for a ready-to-use setup out of the box.
Specifications
- Compact unbalanced piston first stage design
- Integrated Over-Pressure Valve (OPV)
- Designed for argon and drysuit inflation up to 330 ft (100 m)
- Weight: 12.4 oz (351.5 g)
- Dimensions: 3.5 in × 1.25 in (8.9 cm × 3.2 cm)
- DIN connection with included inflation hose
Features & Benefits
- Compact and lightweight to reduce bulk on inflation bottles.
- Integrated OPV provides added safety in the event of first-stage failure.
- Durable chrome-plated components resist corrosion and wear.
- Ready-to-use configuration includes argon inflation hose.
- Engineered for deep technical drysuit diving applications.
Setup & Configuration
1. Inspect all components to ensure they are clean and free from contaminants before use.
2. Attach the DIN fitting securely to the inflation bottle valve by hand. Do not use tools for tightening.
3. Connect the included drysuit inflation hose to the low-pressure port on the first stage.
4. Slowly open the cylinder valve and perform a leak check with approved leak-testing fluid.
5. Never attempt to breathe from this regulator — it is intended solely for suit inflation.
Care & Maintenance
Rinse the regulator thoroughly in fresh water after each dive and allow it to dry completely before storage. Do not expose to direct sunlight or high heat. Avoid dropping or striking the regulator body against hard surfaces. Store in a cool, dry place.
Service every 2 years or 100 dives by an authorized Dive Rite technician. If converted for oxygen service, ensure it is cleaned and assembled using oxygen-compatible materials and lubricants.
Warranty & Support
Lifetime warranty for the original purchaser. To maintain warranty coverage, this regulator must be serviced every 2 years or 100 dives by an authorized Dive Rite technician.
For Service & Support Click Here or call (386) 752-1087.
Specifications
FT1 First Stage Regulator
- Balanced diaphragm first stage
- Fixed turret
- Four LP ports angled 90° from fitting (3/8-24 UN)
- Two HP ports angled 90° from fitting (7/16-20 UNF/ISO263)
- Environmentally sealed
- Intermediate pressure: 140 PSI
- Black Sn-Ni plated brass construction
- Available in DIN or Yoke
XT2 Second Stage Regulator
- Pneumatically balanced downstream design
- Internal parts Teflon-coated for cold-water use
- Oxygen-compatible O-rings and lubricant
- Adjustable inhalation control (fine-tunes breathing effort)
- Available in right-hand, left-hand, or yellow faceplate configurations
Available as follows:
- RG5700 FT Regulator First Stage – DIN (RG5700-DIN) or Yoke (RG5700-YOKE); no hose.
- RG5200 XT Second Stage – Right-hand (RG5200-RIGHT), Left-hand (RG5200-LEFT), or Yellow (RG5200-YELLOW); no hose.
- RG5800 XT Regulator Set – FT1 First Stage + XT2 Second Stage with 28" LP hose. DIN (RG5800-DIN) or Yoke (RG5800-YOKE).
- PK5800-OW Advanced Open Water Regulator Set – FT1 First Stage (1), XT2 Second Stage (2), 40" LP hose (1), 22" LP hose (1), 70° adapter (1), Regulator necklace (1), 2" SPG with 32" HP hose (1), small swivel bolt snap, and hose clip retainer.
